Aluminum 600V Secondary Ud

Name: Aluminum 600V Secondary Ud
Brand: Dongchao Cable Co., Ltd.

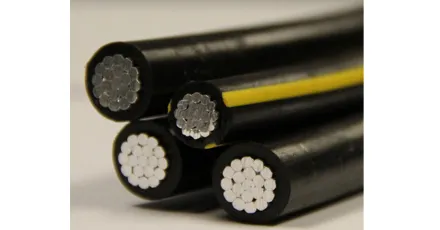

Aluminum 600V Secondary UD Cable is engineered for reliable power distribution in underground systems. Built with durable aluminum conductors and XLPE insulation, it ensures excellent resistance to heat, moisture, and abrasion, making it ideal for ducts or direct burial applications up to 600 volts.

Add to Quote

 

Specifications of Aluminum 600V Secondary Ud

ALUMINUM 1350 CONDUCTORS SECONDARY UD: SINGLE CONDUCTOR
CODE	PART NO.	XLPE INSULATED PHASE CONDUCTOR			NOMINAL OD (INCHES)	NET WEIGHT (LBS/MFT)	AMPACITY
CODE	PART NO.	SIZE(AWG)	STRAND	INSULATION(MILS)	NOMINAL OD (INCHES)	NET WEIGHT (LBS/MFT)	DIRECT BURIAL	IN DUCT
CORNELL	UD-CORNELLSING8	8	7	60	0.26	34	74	36
PRINCETON	UD-PRINCETONSING6	6	7	60	0.3	47	96	47
MERCER	UD-MERCERSING4	4	7	60	0.35	67	117	60
CLEMSON	UD-CLEMSONSING2	2	7	60	0.41	97	154	82
KENYON	UD-KENYONSING1	1	19	80	0.49	128	171	97
HAVARD	UD-HARVARDSING1/0	1/0	19	80	0.52	154	193	112
YALE	UD-YALESING2/0	2/0	19	80	0.57	186	221	132
TUFTS	UD-TUFTSSING3/0	3/0	19	80	0.62	225	253	155
BELOIT	UD-BELOITSING4/0	4/0	19	80	0.68	274	290	185
HOFSTRA	UD-HOFSTRASING250	250	37	95	0.75	329	317	199
GONZAGA	UD-GONZAGASING300	300	37	95	0.81	385	349	223
RUTGERS	UD-RUTGERSSING350	350	37	95	0.85	439	381	248
DARTMOUTH	UD-DARTMOUTHSING400	400	37	95	0.9	493	410	272
BROWN	UD-BROWNSING450	450	37	95	0.94	547	439	295
EMORY	UD-EMORYSING500	500	37	95	0.98	601	464	318
DUKE	UD-DUKESING600	600	61	110	1.09	725	514	355
FURMAN	UD-FURMANSING700	700	61	110	1.16	830	549	386
SEWANEE	UD-SEWANEESING750	750	61	110	1.19	883	567	403
FORDHAM	UD-FORDHAMSING-1000	1000	61	110	1.34	1144	665	492

ALUMINUM 1350 CONDUCTORS SECONDARY UD: DUPLEX/TRIPLEX/QUADPLEX CONDUCTOR
CODE	PART NO.	XLPE INSULATED PHASE CONDUCTOR			XLPE INSULATED PHASE CONDUCTOR			NOMINAL OD (INCHES)		NET WEIGHT (LBS/MFT)	AMPACITY
CODE	PART NO.	SIZE(AWG)	STRAND	INSULATION(MILS)	SIZE(AWG)	STRAND	INSULATION(MILS)	SINGLE PHASE COND.	COMPLETE CABLE	NET WEIGHT (LBS/MFT)	DIRECT BURIAL	IN DUCT
DUPLEX CONDUCTOR 600V SECONDARY UD
BARD	UD-BARDDUP8	8	7	60	8	7	60	262	0.524	76	70	55
CLAFLIN	UD-CLAFLINDUP6	6	7	60	6	7	60	298	0.596	91	95	70
DELGADO	UD-DELGADODUP4	4	7	60	4	7	60	345	0.69	129	125	90
EVERETT	UD-EVERETTDUP2	2	7	60	2	7	60	403	0.806	189	187	100
TRIPLEX CONDUCTOR 600V SECONDARY UD
ERSKINE	UD-ERSKINETRIP6	6	7	60	6	7	60	298	0.644	136	95	70
VASSAR	UD-VASSARTRIP4	4	7	60	4	7	60	345	0.745	194	125	90
STEPHENS	UD-STEPHENSTRIP2	2	7	60	4	7	60	403	0.87	260	165	120
RAMAPO	UD-RAMAPOTRIP2	2	7	60	2	7	60	403	0.87	290	165	120
BRENAU	UD-BRENAUTRIP1/0	1/0	19	80	2	7	60	512	1.106	409	215	160
BERGEN	UD-BERGENTRIP1/0	1/0	19	80	1/0	19	80	512	1.106	476	215	160
CONVERSE	UD-CONVERSETRIP2/0	2/0	19	80	1	19	80	555	1.199	490	245	180
HUNTER	UD-HUNTERTRIP2/0	2/0	19	80	2/0	19	80	555	1.199	540	245	180
HOLLINS	UD-HOLLINSTRIP3/0	3/0	19	80	1/0	19	80	603	1.302	586	280	205
SWEETBRIAR	UD-SWEETBRIARTRIP4/0	4/0	19	80	2/0	19	80	658	1.421	740	315	240
MONMOUTH	UD-MONMOUTHTRIP4/0	4/0	19	80	4/0	19	80	658	1.421	847	315	240
PRATT	UD-PRATTTRIP250	250	37	95	3/0	19	80	732	1.581	857	345	265
WESLEYAN	UD-WESLEYANTRIP350	350	37	95	4/0	19	80	831	1.795	1135	415	320
RIDER	UD-RIDERTRIP500	500	37	95	350	37	95	980	2.117	1248	495	395
FAIRFIELD	UD-FAIRFIELDTRIP750	750	61	110	500	37	95	1118	2.86	2304	615	525
QUADPLEX CONDUCTOR 600V SECONDARY UD
TULSA	UD-TULSAQUAD4	4	7	60	4	7	60	345	0.833	258	120	85
DYKE	UD-DYKEQUAD2	2	7	60	4	7	60	403	0.973	367	155	115
WITTENBERG	UD-WITTENBERGQUAD2	2	7	60	2	7	60	403	0.973	375	155	115
NOTREDAME	UD-NOTREDAMEQUAD1/0	1/0	19	80	2	7	60	512	1.236	574	200	150
PURDUE	UD-PURDUEQUAD1/0	1/0	19	80	1/0	19	80	512	1.236	596	200	150
SYRACUSE	UD-SYRACUSEQUAD2/0	2/0	19	80	1	19	80	555	1.34	664	225	170
LAFAYETTE	UD-LAFAYETTEQUAD2/0	2/0	19	80	2/0	19	80	555	1.34	720	225	170
SWARTHMORE	UD-SWARTHMOREQUAD3/0	3/0	19	80	1/0	19	80	603	1.456	805	250	195
DAVIDSON	UD-DAVIDSONQUAD3/0	3/0	19	80	3/0	19	80	603	1.456	874	250	195
WAKE FOREST	UD-WAKEFORESTQUAD4/0	4/0	19	80	2/0	19	80	658	1.588	1036	290	225
EARLHAM	UD-EARLHAMQUAD4/0	4/0	19	80	4/0	19	80	658	1.588	1066	290	225
RUST	UD-RUSTQUAD250	250	37	95	3/0	19	80	760	1.83	1213	325	210
SLIPPERY ROCK	UD-SLIPPERYROCKQUAD	350	37	95	4/0	19	80	831	1.945	1544	385	305
WOFFORD	UD-WOFFORDQUAD500	500	37	95	350	37	95	990	2.39	2251	467	420
WINDHAM	UD-WINDHAMQUAD750	750	61	110	500	37	95	1200	2.89	3266	615	492

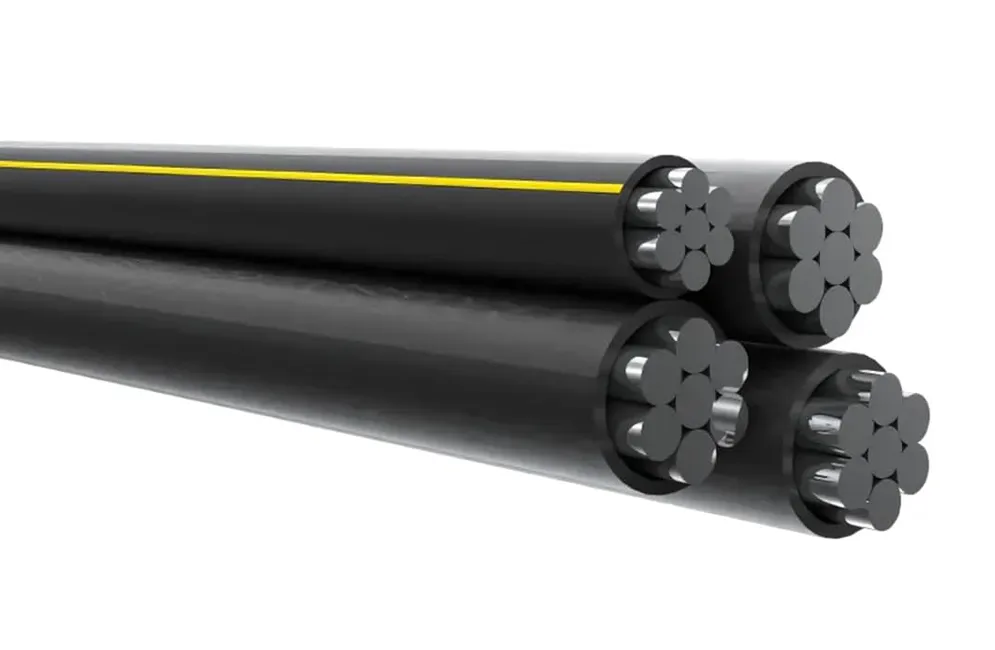

Features of Aluminum 600V Secondary Ud

High-performance 1350-H19 aluminum conductor for efficient power transfer.
XLPE insulation ensures durability under heat and moisture.
Resistant to abrasion, oil, and chemicals.
Suitable for both dry and wet locations.
Easy installation for underground distribution systems.

Applications Scenarios of Aluminum 600V Secondary Ud

Ideal for underground secondary power distribution systems.
Designed for installation in ducts or direct burial environments.
Suitable for residential, commercial, and light industrial power networks.
Performs reliably in both dry and wet conditions up to 90°C.
