Duplex Service Drop

Name: Duplex Service Drop
Brand: Dongchao Cable Co., Ltd.

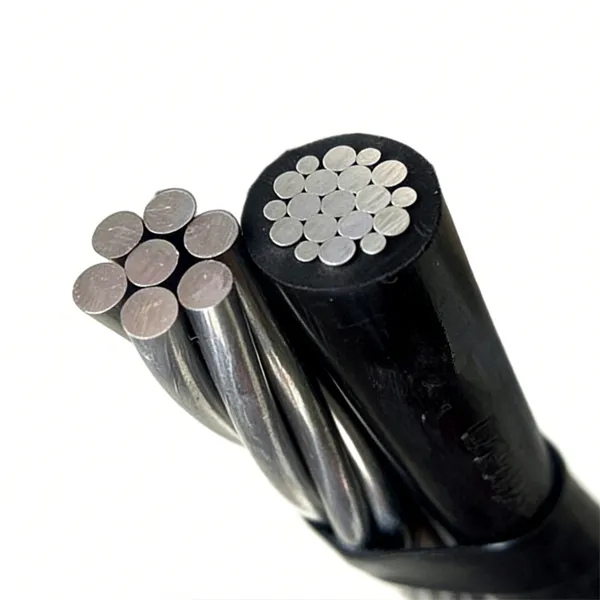

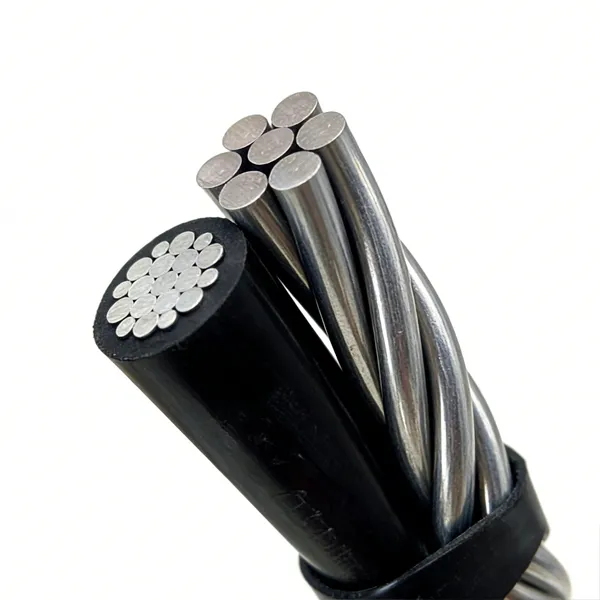

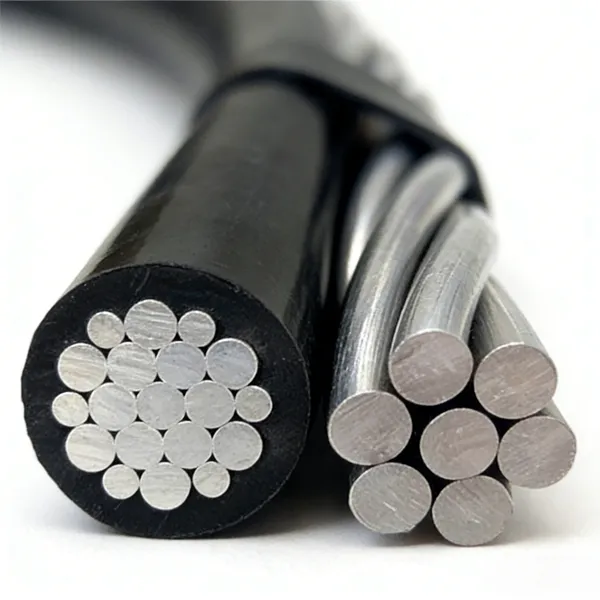

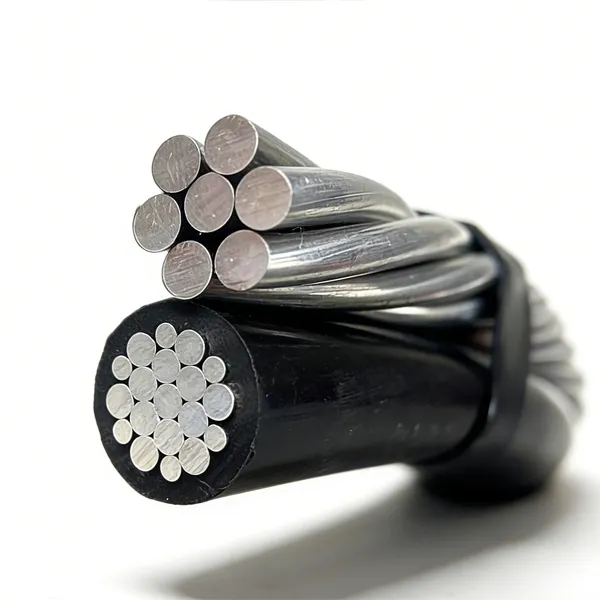

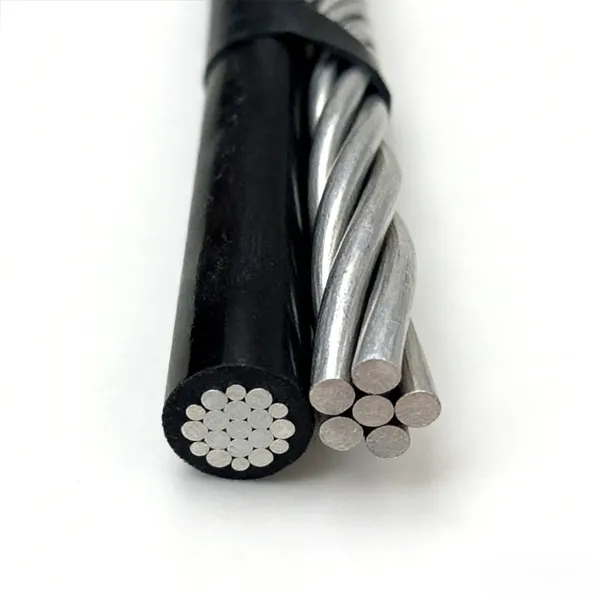

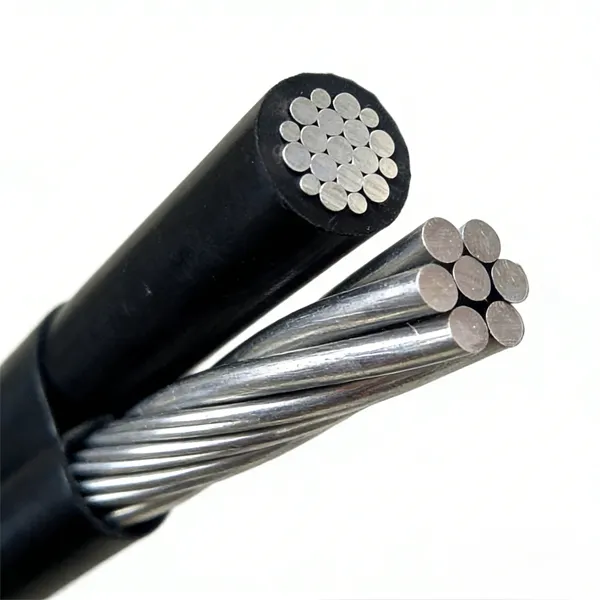

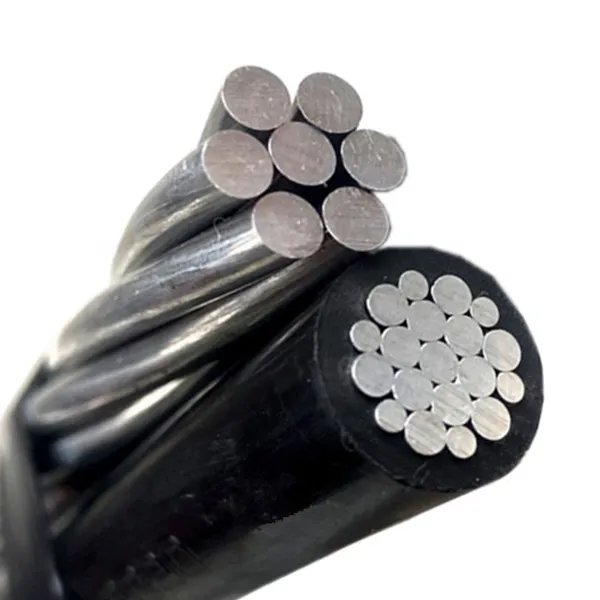

Duplex Service Drop is a lightweight, corrosion-resistant overhead cable designed to deliver reliable power from utility lines to residential or small commercial buildings. Constructed with durable aluminum conductors and a supported neutral messenger, it offers stable performance, easy installation, and long-term service in varied outdoor environments.

Add to Quote

200 amp service wire from meter to panel

cost to replace electrical service entrance cable

 

Specifications of Duplex Service Drop

DUPLEX SERVICE DROP
CODE NAME	PHASE CONDUCTOR			BARE NEUTRAL MESSENGER			WEIGHT (LBS/MFT)		RATING (AMPS)
CODE NAME	SIZE (AWG)	STRAND	INSULATION THICKNESS (MLS)	SIZE (AWG)	STRAND	BREAKING STRENGTH (LBS)	XLP	POLY	XLP	POLY
AAC
Pekingese	6	Solid	45	6	7/w	563	63.5	61.7	85	70
Collie	6	7/w	45	6	7/w	563	66.8	63.1	85	70
Dachshund	4	Solid	45	4	7/w	881	95.5	93.4	110	90
Spaniel	4	7/w	45	4	7/w	881	100.5	95.4	110	90
Doberman	2	7/w	45	2	7/w	1350	152.7	145.7	150	120
Malemute	1/0	19/w	60	1/0	7/w	1990	242.6	234.2	200	160
ACSR NEUTRAL-MESSENGER
Setter	6	Solid	45	6	45809	1190	75	73.2	85	70
Shepherd	6	7/w	45	6	45809	1190	78.3	74.6	85	70
Eskimo	4	Solid	45	4	45809	1860	113.7	111.6	110	90
Terrier	4	7/w	45	4	45809	1860	118.7	113.6	110	90
Chow	2	7/w	45	2	45809	2850	181.7	174.7	150	120
Bull	1/0	19/w	60	1/0	45809	4380	288.7	280.3	200	160
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	Solid	45	6	7/w	1110	67.6	65.8	85	70
Vizsla	6	7/w	45	6	7/w	1110	70.9	67.2	85	70
Harrier	4	Solid	45	4	7/w	1760	102	99.9	110	90
Whippet	4	7/w	45	4	7/w	1760	107	101.9	110	90
Schnauzer	2	7/w	45	2	7/w	2800	163.3	156.2	150	120
Heeler	1/0	19/w	60	1/0	7/w	4460	259.2	250.8	200	160

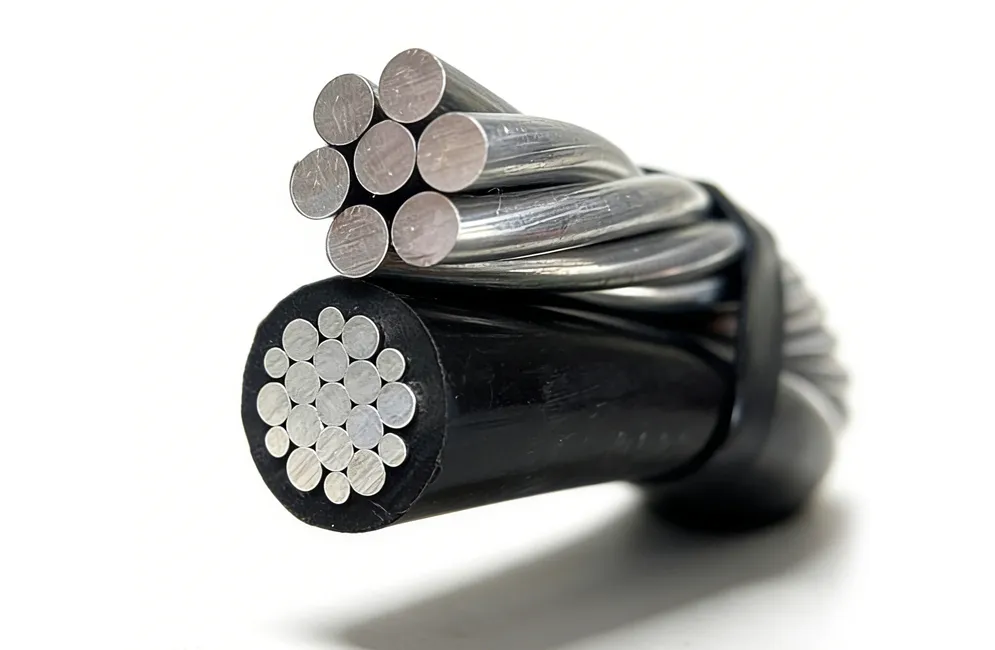

Features of Duplex Service Drop

Lightweight Aluminum Conductors – Easy to handle, install, and support on poles.
Corrosion-Resistant Materials – Ensures reliable performance in humid, coastal, or high-UV environments.
Durable Neutral Messenger – Provides both grounding and mechanical support for stable overhead spans.
Excellent Electrical Performance – Low power loss and consistent conductivity for residential service connections.
Weather-Resistant Insulation – Withstands sunlight, abrasion, and temperature changes for long service life.

Application scenarios for Duplex Service Drop:

Residential Service Connections – Commonly used to supply power from utility poles to homes.
Rural and Suburban Distribution – Ideal for overhead low-voltage lines in less densely populated areas.
Temporary or Light Commercial Installations – Suitable for small shops, farms, and temporary power needs.
Utility Pole-to-Meter Runs – Frequently used for delivering electricity from pole-mounted transformers to customer meters.
