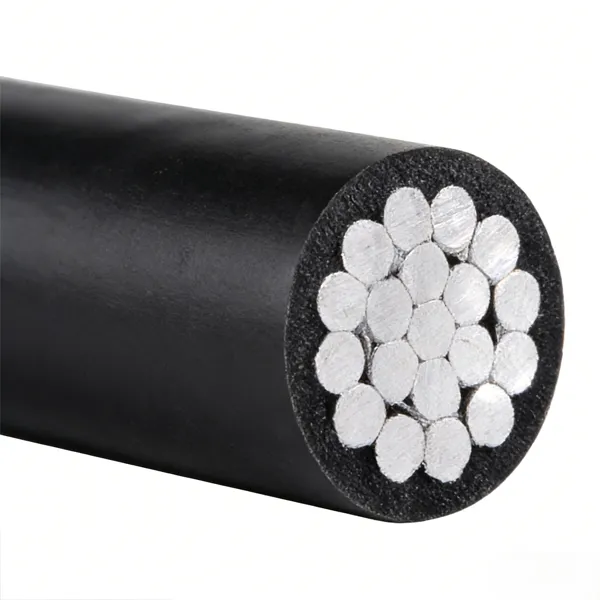

Aluminum Covered Line Wire

Name: Aluminum Covered Line Wire
Brand: Dongchao Cable Co., Ltd.

Aluminum Covered Line Wire is a durable overhead conductor designed for distribution networks requiring enhanced insulation and weather resistance. Constructed with high-strength aluminum and a protective covering, it offers reliable performance against moisture, abrasion, and environmental stress, making it ideal for modern utility and rural electrification systems.

Add to Quote

 

Specifications of Aluminum Covered Line Wire

ALUMINUM COVERED LINE WIRE
CODE NAME	SIZE (AWG or MCM)	STRAND	INSULATION THICKNESS (MILS)	OUTSIDE DIAMETER (INCHES)	RATED STRENGTH (LBS)	WEIGHT		AMPACITY (AMPS)
CODE NAME	SIZE (AWG or MCM)	STRAND	INSULATION THICKNESS (MILS)	OUTSIDE DIAMETER (INCHES)	RATED STRENGTH (LBS)	XLP	POLY	XLP
AAC
Apple	6	Solid	30	0.222	445	33	32	105
Pear	4	Solid	30	0.264	675	48.5	47.3	135
Apricot	4	7/w	30	0.285	790	51.5	50.8	140
Peach	2	7/w	45	0.373	1220	87.1	84	180
Quince	1/0	7/w	60	0.477	1790	140.7	135.6	240
Orange	2/0	7/w	60	0.522	2260	171.9	166.2	280
Fig	3/0	7/w	60	0.57	2740	210.5	204	320
Olive	4/0	7/w	60	0.626	3450	258.7	251.4	370
Pomegranate	4/0	19/w	60	0.632	3620	254.8	247.9	370
Mulberry	266.8	19/w	60	0.692	4470	313.5	305.8	430
Anona	336.4	19/w	60	0.766	5535	387.6	378.8	495
Molles	397.4	19/w	75	0.852	6400	469.2	457.4	545
Huckleberry	477	37/w	75	0.921	7820	550	537.5	610
Paw Paw	556.5	37/w	75	0.982	8950	633	619.4	670
Breadfruit	636	61/w	95	1.08	10510	742.6	724.7	720
Persimmon	795	61/w	95	1.187	12900	910	890	825
Grapefruit	1033.5	61/w	95	1.327	16500	1156.7	1133.8	970
ACSR
Walnut	6	45809	30	0.258	1131	49	47	105
Butternut	4	45809	30	0.303	1170	71.8	70	135
Hickory	4	45839	30	0.309	2240	81.6	79.8	135
Pignut	2	45809	45	0.397	2710	118.1	114.8	180
Beech	2	45839	45	0.405	3460	134.1	130.7	180
Chestnut	1	45809	45	0.434	3370	145.5	141.8	210
Almond	1/0	45809	60	0.506	4160	190.4	184.9	235
Pecan	2/0	45809	60	0.554	5040	234.2	227.9	270
Filbert	3/0	45809	60	0.607	6290	288.5	281.4	305
Buckeye	4/0	45809	60	0.666	7930	356.5	348.5	345
Hackberry	266.8	45675	60	0.711	6540	354.8	346.8	435
ALLOY 6201-T81
Hornbeam	4	7/w	30	0.31	1480	62.1	60.1	145
Linden	2	7/w	45	0.406	2520	96.1	93.3	190
Oilnut	1/0	7/w	60	0.518	4010	166.1	160	250
Waterash	2/0	7/w	60	0.567	4850	203.3	196.4	290
Shellbark	3/0	7/w	60	0.622	6110	249.4	241.4	335
Planetree	4/0	7/w	60	0.683	7700	307.3	298.1	385

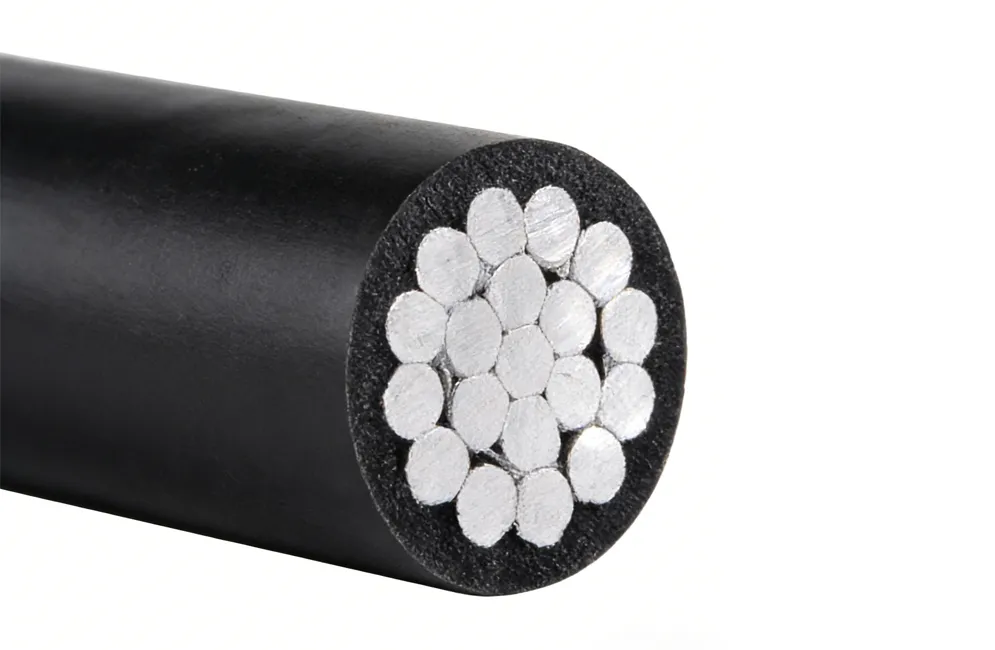

Features of Aluminum Covered Line Wire

Enhanced Protection: Insulation layer shields the conductor from moisture, abrasion, and environmental exposure.
Lightweight & High Strength: Aluminum construction provides excellent strength-to-weight ratio for easier installation.
Corrosion Resistant: Performs reliably in coastal, humid, and industrial environments.
Improved Safety: Covered design reduces risk of outages from tree contact or accidental touch.
Long Service Life: Durable materials ensure stable electrical performance and reduced maintenance needs.

Application Scenarios of Aluminum Covered Line Wire

Overhead distribution systems in urban, suburban, and rural networks.
Areas with frequent vegetation contact, reducing outages caused by tree branches.
Coastal or industrial zones requiring strong corrosion resistance.
Service entrance and secondary distribution lines for residential and commercial loads.
Regions with harsh climates, including high humidity, wind, or pollution, where extra insulation improves reliability.
