UL AL Multicore Conductor USE-2

Name: UL AL Multicore Conductor USE-2
Brand: Dongchao Cable Co., Ltd.

Mobile Home Feeder Cable is mainly used for supplying the energy required within the mobile home. The cable is designed for use at 600 volts or less and conductor temperatures not exceeding 90ºC.

Add to Quote

dongchaocable 10 3 with ground building wire

 

Back

Compare Products

Add to Quote

PART NO.	CONDUCTOR SIZE (AWG or KCMIL)	XLPE INSULATION PHASE			XLPE INSULATION NEUTRAL			XLPE INSULATION GROUND			NOMINAL OD (INCHES)	NET WEIGHT (LBS/MFT)
	CONDUCTOR SIZE (AWG or KCMIL)	SIZE (AWG)	INSULATION (MILS)	DIAMETER (INCHES)	SIZE (AWG)	INSULATION (MILE)	DIAMETER (INCHES)	SIZE (AWG)	INSULATION (MILS)	DIAMETER (INCHES)	NOMINAL OD (INCHES)	NET WEIGHT (LBS/MFT)
	MHF-2-04MHFALR	MHF-2-04MHFALR	2-2-4-6	2	60	0.39	4	60	0.34	60	0.29	0.89	295	6
MHF-2-04MHFAL	MHF-2-04MHFAL	2-2-2-4	2	60	0.39	2	60	0.39	60	0.34	0.91	343	4
MHF-2/0-04MHFALR	MHF-2/0-04MHFALR	2/0-2/0-1-4	2/0	80	0.54	1	80	0.46	60	0.34	1.18	562	4
MHF-2/0-04MHFAL	MHF-2/0-04MHFAL	2/0-2/0-2/0-1	2/0	80	0.54	2/0	80	0.54	80	0.46	1.25	683	1
MHF-4/0-04MHFALR	MHF-4/0-04MHFALR	4/0-4/0-2/0-4	4/0	80	0.64	2/0	80	0.54	60	0.34	1.38	799	4
MHF-4/0-04MHFAL	MHF-4/0-04MHFAL	4/0-4/0-4/0-2/0	4/0	80	0.64	4/0	80	0.64	80	0.54	1.48	1010	2/0

PART NO.

CONDUCTOR SIZE (AWG or KCMIL)

XLPE INSULATION PHASE

XLPE INSULATION NEUTRAL

XLPE INSULATION GROUND

NOMINAL OD (INCHES)

NET WEIGHT (LBS/MFT)

SIZE (AWG)

INSULATION (MILS)

DIAMETER (INCHES)

SIZE (AWG)

INSULATION (MILE)

DIAMETER (INCHES)

SIZE (AWG)

INSULATION (MILS)

DIAMETER (INCHES)

Page 1 of 1
Showing rows 1 to 10 of 13

Show

entries.

Specifications of UL AL Multicore Conductor USE-2

UL Aluminum Cables Multicore Conductor USE-2
PART NO.	CONDUCTOR SIZE	XLPE INSULATION PHASE			XLPE INSULATION NEUTRAL			XLPE INSULATION GROUND			NOMINAL OD	NET WEIGHT
	CONDUCTOR SIZE	SIZE	INSULATION	DIAMETER	SIZE	INSULATION	DIAMETER	SIZE	INSULATION	DIAMETER	NOMINAL OD	NET WEIGHT
	(AWG or KCMIL)	(AWG)	(MILS)	(INCHES)	(AWG)	(MILE)	(INCHES)	(AWG)	(MILS)	(INCHES)	(INCHES)	(LBS/MFT)
MHF-2-04MHFALR	2-2-4-6	2	60	0.39	4	60	0.34	6	60	0.29	0.89	295
MHF-2-04MHFAL	2-2-2-4	2	60	0.39	2	60	0.39	4	60	0.34	0.91	343
MHF-2/0-04MHFALR	2/0-2/0-1-4	2/0	80	0.54	1	80	0.46	4	60	0.34	1.18	562
MHF-2/0-04MHFAL	2/0-2/0-2/0-1	2/0	80	0.54	2/0	80	0.54	1	80	0.46	1.25	683
MHF-4/0-04MHFALR	4/0-4/0-2/0-4	4/0	80	0.64	2/0	80	0.54	4	60	0.34	1.38	799
MHF-4/0-04MHFAL	4/0-4/0-4/0-2/0	4/0	80	0.64	4/0	80	0.64	2/0	80	0.54	1.48	1010

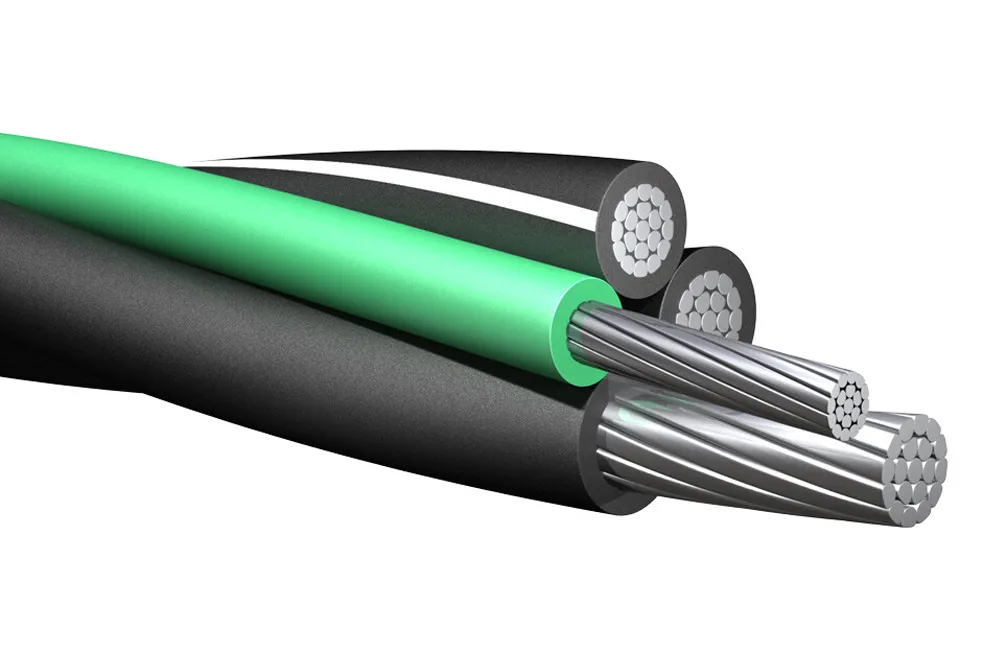

Features of UL AL Multicore Conductor USE-2

Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation: Abrasion, moisture, heat, and sunlight resistant colored crosslinked polyethylene (XLPE).
Assembly: Cabled assembly of two phase conductors (black with one marked phase A and one marked
phase B), one neutral conductor(black with three extruded white stripes), and one ground conductor (green).
