UL AL SEU With XHHW-2

UL Type SE, Style U cables are used as an above ground service entrance cable, panel feeder and in branch circuits in accordance with NEC Article 338. The conductor is suitable for use in dry or wet locations at temperatures not to exceed 90°C. The cable is rated 600 V

Contact Us PDF Download
Add to Quote
dongchaocable commercial building wire
dongchaocable 16mm2 building wire
dongchaocable 25mm building wire
dongchaocable 3 insulated copper wire
dongchaocable 2.5 mm building wire
dongchaocable 6mm building wire
dongchaocable commercial building wire
dongchaocable 16mm2 building wire
dongchaocable 25mm building wire
dongchaocable 3 insulated copper wire
dongchaocable 2.5 mm building wire
dongchaocable 6mm building wire
Back
Compare Products
Add to Quote
PART NO. CONDUCTOR SIZE NOMINAL OD NET WEIGHT AMPACITY
(AWG or KCMIL) (INCHES) (LBS/MFT) 60℃ 75℃ 90℃
SEU-8-02-SEUAL SEU-8-02-SEUAL
SEU-6-02-SEUAL SEU-6-02-SEUAL
SEU-4-02-SEUALR SEU-4-02-SEUALR
SEU-4-02-SEUALF SEU-4-02-SEUALF
SEU-2-02-SEUALR SEU-2-02-SEUALR
SEU-2-02-SEUALF SEU-2-02-SEUALF
SEU-1-02-SEUAL SEU-1-02-SEUAL
SEU-1/0-02-SEUALR SEU-1/0-02-SEUALR
SEU-1/0-0SEU-1/0-02-SEUALF SEU-1/0-0SEU-1/0-02-SEUALF
SEU-2/0-02-SEUALR SEU-2/0-02-SEUALR
SEU-2/0-02-SEUALF SEU-2/0-02-SEUALF
SEU-4/0-02-SEUALR SEU-4/0-02-SEUALR
SEU-4/0-0SEU-4/0-02-SEUALF SEU-4/0-0SEU-4/0-02-SEUALF
PART NO. CONDUCTOR SIZE NOMINAL OD NET WEIGHT AMPACITY
(AWG or KCMIL) (INCHES) (LBS/MFT) 60℃ 75℃ 90℃
Page 1 of 1
Showing rows 1 to 10 of 13

Show

entries.

Specifications of UL AL SEU With XHHW-2


UL Aluminum Cables  SE-U With XHHW-2 Inners
PART NO.CONDUCTOR SIZENOMINAL ODNET WEIGHTAMPACITY
(AWG or KCMIL)(INCHES)(LBS/MFT)60℃75℃90℃
SEU-8-02-SEUAL8/8/80.44x0.66184354045
SEU-6-02-SEUAL6/6/60.47x0.73190405055
SEU-4-02-SEUALR4/4/60.52x0.82229556575
SEU-4-02-SEUALF4/4/40.52x0.82229556575
SEU-2-02-SEUALR2/2/40.57x0.932887590100
SEU-2-02-SEUALF2/2/20.57x0.932887590100
SEU-1-02-SEUAL1/1/10.62x1.2634385100115
SEU-1/0-02-SEUALR1/0-1/0-20.66x1.10395100120135
SEU-1/0-02-SEUALF1/0-1/0-1/00.66x1.10415100120135
SEU-2/0-02-SEUALR2/0-2/0-10.70x1.18459115135150
SEU-2/0-02-SEUALF2/0-2/0-2/00.70x1.20507115135150
SEU-4/0-02-SEUALR4/0-4/0-2/00.81x1.40684150180205
SEU-4/0-02-SEUALF4/0-4/0-4/00.85x1.44761150180205

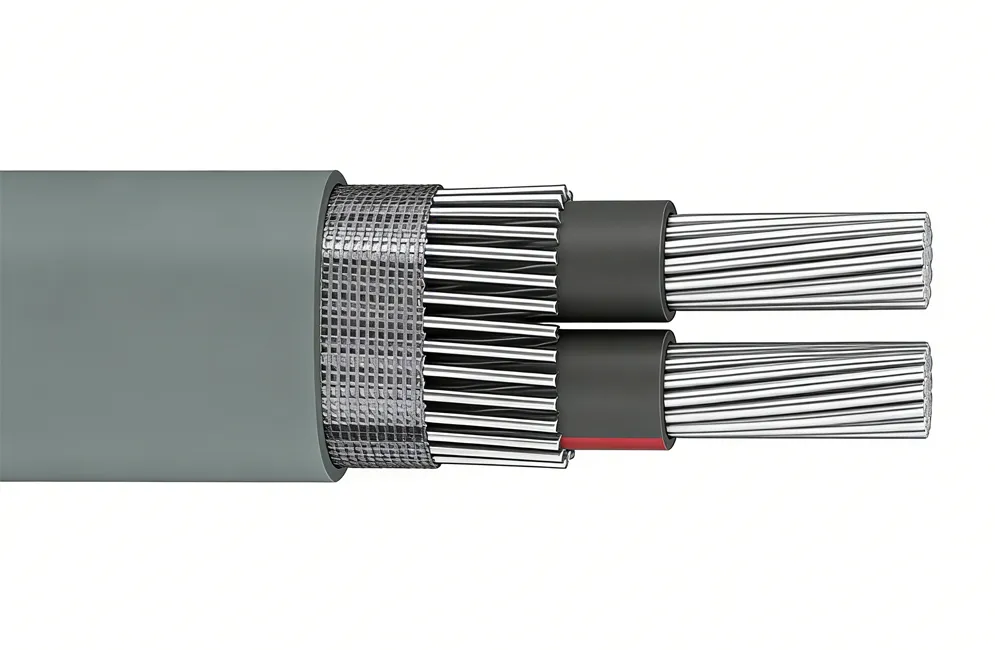

Features of UL AL SEU With XHHW-2

  • Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).

  • Insulation: Abrasion, moisture, and heat resistant color coded crosslinked polyethylene (XLPE), UL Type XHHW.

  • Assembly: Solid bare wires are helically applied over a pair of parallel insulated conductors. A flame retardant fiberglass reinforced binder tape assembles the core in a flat configuration.

  • Tape and Finish Covering: Sunlight resistant, RoHS compliant, flame retardant, gray polyvinyl chloride(PVC) material.

Features of UL AL SEU With XHHW-2
