UL AL SER With XHHW-2

UL Type SE, Style R cables are used as an above ground service entrance cable, panel feeder and in branch circuits in accordance with NEC Article 338. The conductor is suitable for use in dry or wet locations at temperatures not to exceed 90°C. The cable is rated 600 V.

Contact Us PDF Download
Add to Quote
dongchaocable 100 ft indoor copper building wire
dongchaocable 16mm building wire
dongchaocable 14 2 building wire
dongchaocable 10mm building wire
dongchaocable 12 2 nm wg 250 ft
dongchaocable 10 gauge building wire
dongchaocable 100 ft indoor copper building wire
dongchaocable 16mm building wire
dongchaocable 14 2 building wire
dongchaocable 10mm building wire
dongchaocable 12 2 nm wg 250 ft
dongchaocable 10 gauge building wire
Back
Compare Products
Add to Quote
PART NO. CONDUCTOR SIZE NOMINAL OD NET WEIGHT AMPACITY
(AWG or KCMIL) (INCHES) (LBS/MFT) 60℃ 75℃ 90℃
SER-8-02GSERAL SER-8-02GSERAL 8-8-8 0.53 97 35 40 45
SER-6-02GSERAL SER-6-02GSERAL 6-6-6 0.60 133 40 50 55
SER-4-02GSERALR SER-4-02GSERALR 4-4-6 0.69 173 55 65 75
SER-4-02GSERALF SER-4-02GSERALF 4-4-4 0.69 188 55 65 75
SER-2-02GSERALR SER-2-02GSERALR 2-2-4 0.80 248 75 90 100
SER-2-02GSERALF SER-2-02GSERALF 2-2-2 0.80 272 75 90 100
SER-1-02GSERAL SER-1-02GSERAL 1-1-1 0.90 340 85 100 115
SER-1/0-02GSERALR SER-1/0-02GSERALR 1/0-1/0-2 0.97 381 100 120 135
SER-1/0-02GSERALF SER-1/0-02GSERALF 1/0-1/0-1/0 0.98 419 100 120 135
SER-2/0-02GSERALR SER-2/0-02GSERALR 2/0-2/0-1 1.05 462 115 135 150
SER-2/0-02GSERALF SER-2/0-02GSERALF 2/0-2/0-2/0 1.06 510 115 135 150
SER-3/0-02GSERALR SER-3/0-02GSERALR 4/0-4/0-2/0 1.25 690 150 180 205
SER-4/0-02GSERALF SER-4/0-02GSERALF 4/0-4/0-4/0 1.27 766 150 180 205
SER-8-03GSERAL SER-8-03GSERAL 8-8-8-8 0.59 128 35 40 45
SER-6-03GSERAL SER-6-03GSERAL 6-6-6-6 0.69 177 40 50 55
SER-4-03GSERAL SER-4-03GSERAL 4-4-4-6 0.76 234 55 65 75
SER-2-03GSERAL SER-2-03GSERAL 2-2-2-4 0.90 336 75 90 100
SER-1-03GSERAL SER-1-03GSERAL 1-1-1-3 1.01 422 85 100 115
SER-1/0-03GSERAL SER-1/0-03GSERAL 1/0-1/0-1/0-2 1.10 521 100 120 135
SER-2/0-03GSERAL SER-2/0-03GSERAL 2/0-2/0-2/0-1 1.20 633 115 135 150
SER-3/0-03GSERAL SER-3/0-03GSERAL 3/0-3/0-3/0-1/0 1.32 774 130 155 175
SER-4/0-03GSERAL SER-4/0-03GSERAL 4/0-4/0-4/0-2/0 1.45 948 150 180 205
SER-250-03GSERAL SER-250-03GSERAL 250-250-250-3/0 1.61 1133 170 205 230
SER-300-03GSERAL SER-300-03GSERAL 300-300-300-4/0 1.75 1342 195 230 260
SER-2-04GSERAL SER-2-04GSERAL 2-2-2-2-4 1.01 425 75 90 100
SER-2/0-04GSERAL SER-2/0-04GSERAL 2/0-2/0-2/0-2/0-1 1.35 807 115 135 150
SER-4/0-04GSERAL SER-4/0-04GSERAL 4/0-4/0-4/0-4/0-2/0 1.63 1204 150 180 205
SER-250-04GSERAL SER-250-04GSERAL 250-250-250-250-3/0 1.8 1438 170 205 230
SER-300-04GSERAL SER-300-04GSERAL 300-300-300-300-4/0 1.95 1701 195 230 260
TWO CONDUCTOR SER
THREE CONDUCTORS SER
FOUR CONDUCTOR SER
PART NO. CONDUCTOR SIZE NOMINAL OD NET WEIGHT AMPACITY
(AWG or KCMIL) (INCHES) (LBS/MFT) 60℃ 75℃ 90℃
Page 1 of 1
Showing rows 1 to 10 of 13

Show

entries.

Specifications of UL AL SER With XHHW-2


UL Aluminum Cables  SE-R With XHHW-2 Inners
PART NO.CONDUCTOR SIZENOMINAL ODNET WEIGHTAMPACITY
(AWG or KCMIL)(INCHES)(LBS/MFT)60℃75℃90℃
TWO CONDUCTOR SER
SER-8-02GSERAL8-8-80.5397354045
SER-6-02GSERAL6-6-60.60133405055
SER-4-02GSERALR4-4-60.69173556575
SER-4-02GSERALF4-4-40.69188556575
SER-2-02GSERALR2-2-40.802487590100
SER-2-02GSERALF2-2-20.802727590100
SER-1-02GSERAL1-1-10.9034085100115
SER-1/0-02GSERALR1/0-1/0-20.97381100120135
SER-1/0-02GSERALF1/0-1/0-1/00.98419100120135
SER-2/0-02GSERALR2/0-2/0-11.05462115135150
SER-2/0-02GSERALF2/0-2/0-2/01.06510115135150
SER-3/0-02GSERALR4/0-4/0-2/01.25690150180205
SER-4/0-02GSERALF4/0-4/0-4/01.27766150180205
THREE CONDUCTORS SER
SER-8-03GSERAL8-8-8-80.59128354045
SER-6-03GSERAL6-6-6-60.69177405055
SER-4-03GSERAL4-4-4-60.76234556575
SER-2-03GSERAL2-2-2-40.903367590100
SER-1-03GSERAL1-1-1-31.0142285100115
SER-1/0-03GSERAL1/0-1/0-1/0-21.10521100120135
SER-2/0-03GSERAL2/0-2/0-2/0-11.20633115135150
SER-3/0-03GSERAL3/0-3/0-3/0-1/01.32774130155175
SER-4/0-03GSERAL4/0-4/0-4/0-2/01.45948150180205
SER-250-03GSERAL250-250-250-3/01.611133170205230
SER-300-03GSERAL300-300-300-4/01.751342195230260
FOUR CONDUCTOR SER
SER-2-04GSERAL2-2-2-2-41.014257590100
SER-2/0-04GSERAL2/0-2/0-2/0-2/0-11.35807115135150
SER-4/0-04GSERAL4/0-4/0-4/0-4/0-2/01.631204150180205
SER-250-04GSERAL250-250-250-250-3/01.81438170205230
SER-300-04GSERAL300-300-300-300-4/01.951701195230260

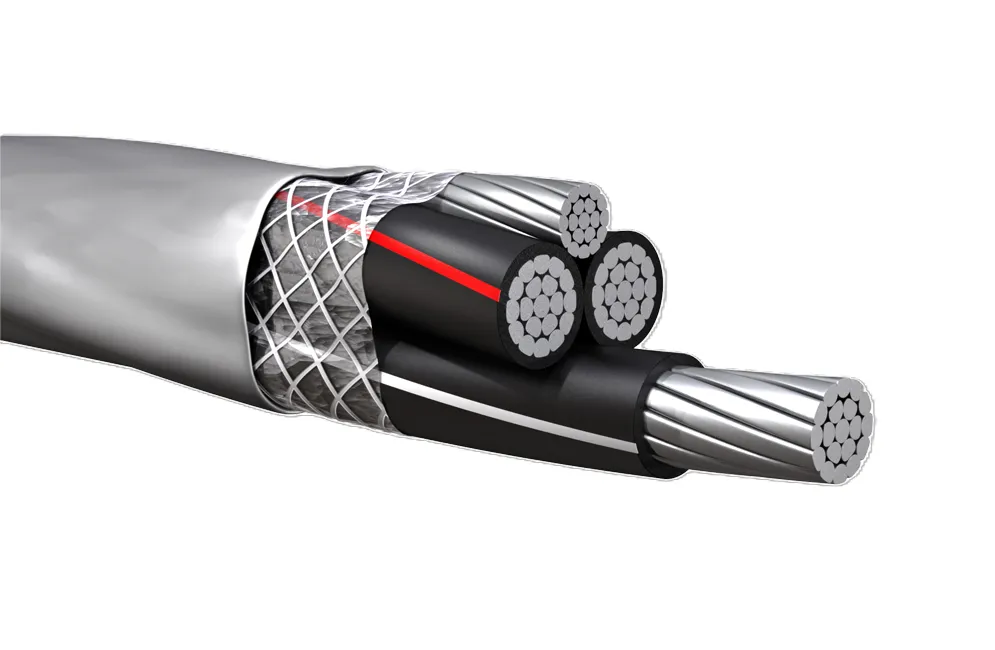

Features of UL AL SER With XHHW-2

  • Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).

  • Insulation: Abrasion, moisture, and heat resistant color coded crosslinked polyethylene (XLPE), UL Type XHHW.

  • Assembly:Insulated conductors are cabled with a bare conductor. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration.

  • Tape and Finish Covering : Sunlight resistant, RoHS compliant, flame retardant, gray polyvinyl chloride(PVC) material.

Features of UL AL SER With XHHW-2
